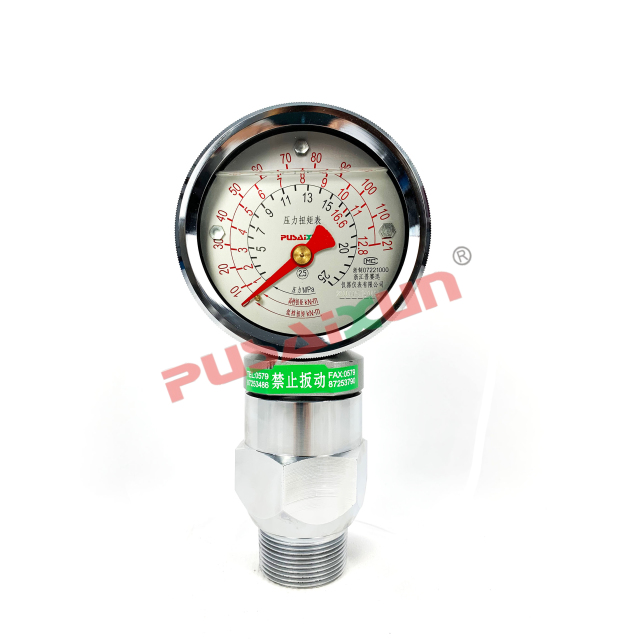

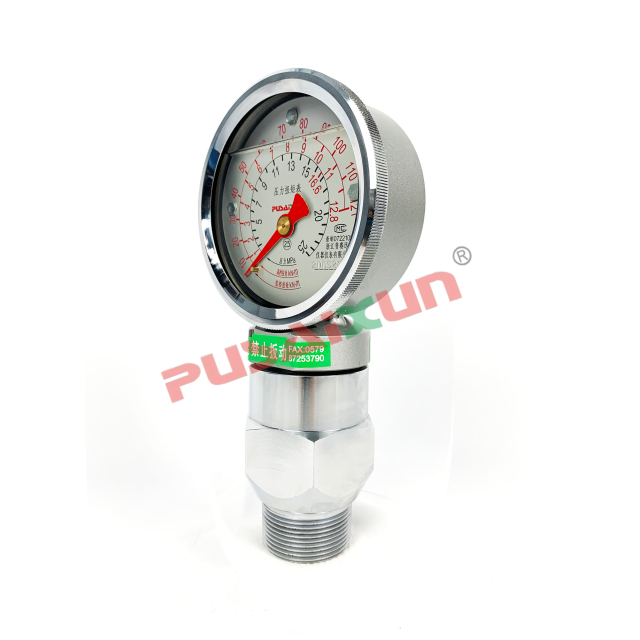

standpipe-type torque gauge YNK-150, YNK-100

No.YNK-150,YNK-100
standpipe-type torque gauges provide dependable, accurate pressure reading. Standpipe type torque gauges that come standard with a M20*1.5. We are available foe a variety of capacities and operation conditions. This gauge are easily viewable at distance of more than 60 feet. Over more, this style of gauges has been in service on mud pumps standpipes for decades.
  • YNK-150, YNK-100 standpipe-type torque gauge
  • YNK-150, YNK-100 standpipe-type torque gauge
  • YNK-150, YNK-100 standpipe-type torque gauge
  • YNK-150, YNK-100 standpipe-type torque gauge
SPECIFICATION
Specification
Pressure range (Mpa)
Accuracy class
0-16 0-25
2.5%
0-40,0-60,0-80,0-100, 0-120, 0-160
1.6%
To order specify:  Metric or English; Connection size, standard 2"NPT (other connections available )
Features
Large dial face is visible up to 60 feet away
Moveable dial model available
Liquid filled gauge minimizes vibration and wear to gauge movement.
Quick and accurate response to pressure changes.
Other pressure units are available: Psi, kPa, bar.
Mounting thread: R1 1/2", R2", R3", NPT1 1/2", NPT2", M20*1.5, M42*2, M36*2
