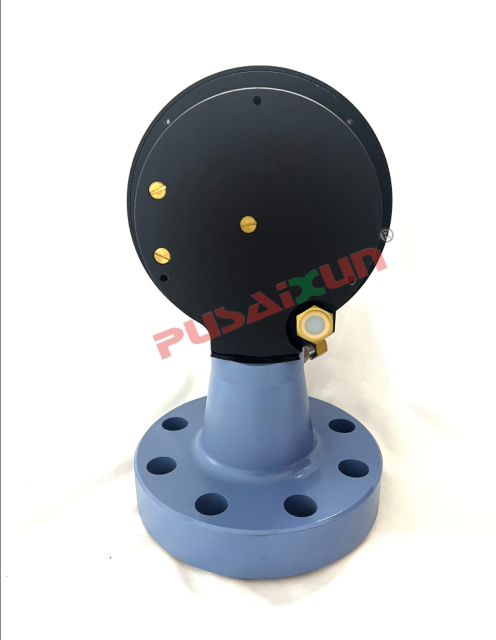

Unitized pressure gauge，0~15000psi Standpipe Pressure Gauge UMG

No.UMG

The gauge consists of a gauge, damper, sensor, and 1502 sub. It offers excellent visibility at various distances and maintains the same level of reliability as our standard 6" gauges. This particular gauge is utilized in mud pumps, stands, pipe shock manifolds, and pump trucks.

GET A QUOTE

SPECIFICATION

Specification

Pressure range (Mpa)	Accuracy class
0-16 0-25	2.5%
0-40,0-60,0-80,0-100, 0-105	1.6%
Operation temperature	-45℃ to +75℃
Gauge monting	1502 nut or Flanged
To order specify: Metric or English;

Features

No rubber cups to be damaged

Easy to view dial from long distance.

Nutted or Flanged models available in various pressure ranges.

Rugged design for years of trouble free service.

Other pressure ranges are available in Psi, kg/㎝2， MPa and bar units of measure。

Zhejiang Precision Instrument company specializes in supplying YK series mud pump pressure gauges and other oilfield-related instruments. Located in China's Technology Hardware City, we have a strong network that enables us to design and customize orders for our clients.
